Twisted Metric Roadstar 1600/1700 Digital Dash Version 3

Developed in Conjunction with Twisted Metric Cycles

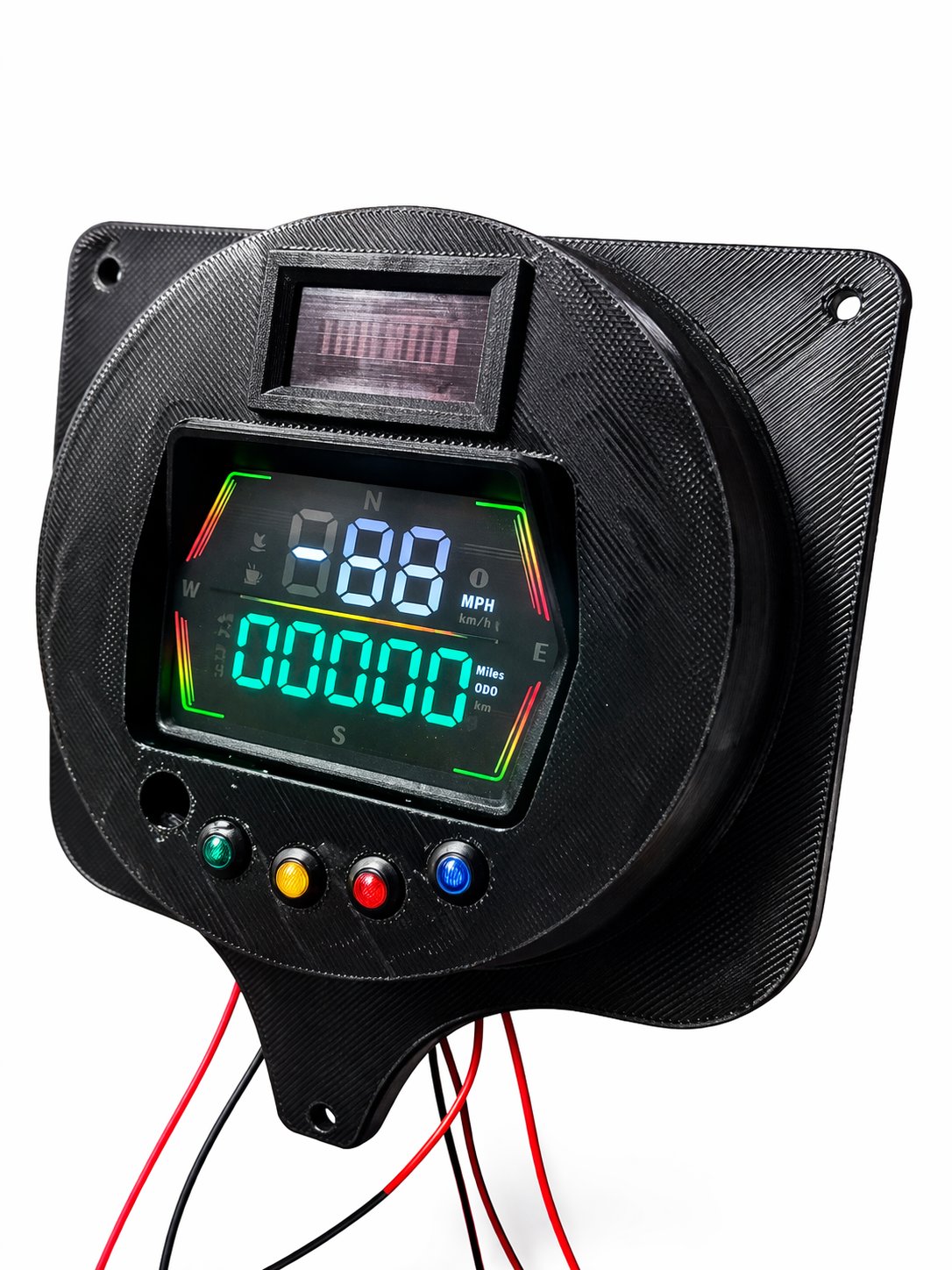

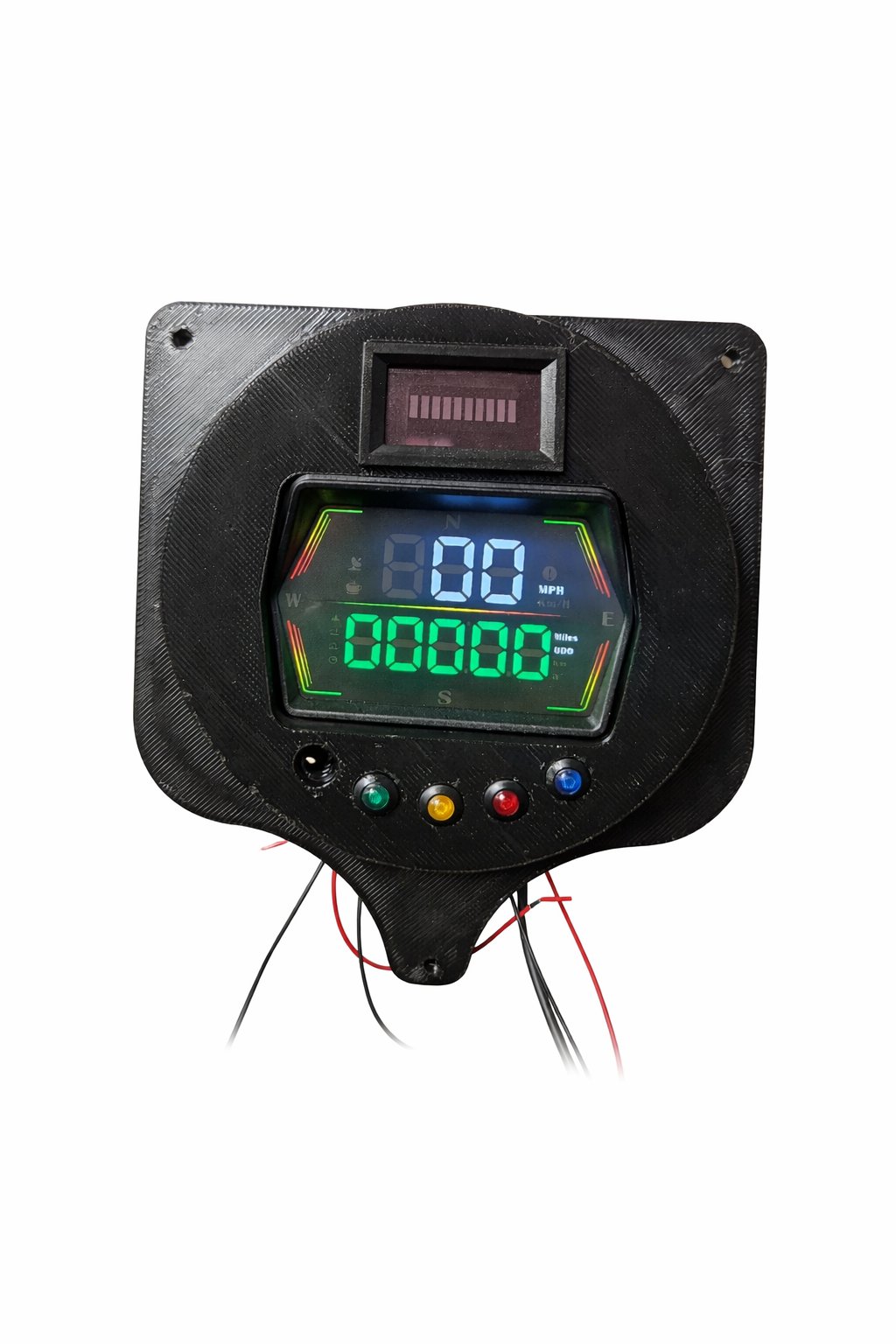

Version 3 of our Popular Digital Dash Conversion for the Yamaha Roadstar 16/1700

Version 2 Includes

GPS Speedo With Odometer

Digital Fuel Gauge

5 Indicator Lights.

Wiring Instructions

Yamaha Roadstar

Wiring Instructions

PLUG 1

Black wire (ground) -

Light Green (FI Check Engine) +

Green (Fuel Level) +

(you will not use red/green, yellow/blue, or white) these are the old gauge wires not needed.

PLUG 2

Yellow (High Beam) - (negative)

Light Blue + Brown - (Neutral Switch) (negative)

Blue 12V + (used for High Beam, Meter Light, Signals) (positive)

Dark Green Turn Signal L - (negative)

Chocolate Turn R - (negative)

All the LED are red wire + and black wire - .....

FUEL GAUGE

Black wire +

Green Wire -

Yellow wire is what goes to the green wire on the roadstar.

Made in Lake Worth Fl
