Shadow 600 Oil Pressure Gauge

Shadow 600 Oil Pressure Gauge – Liquid-Filled Bolt-On Kit for VLX

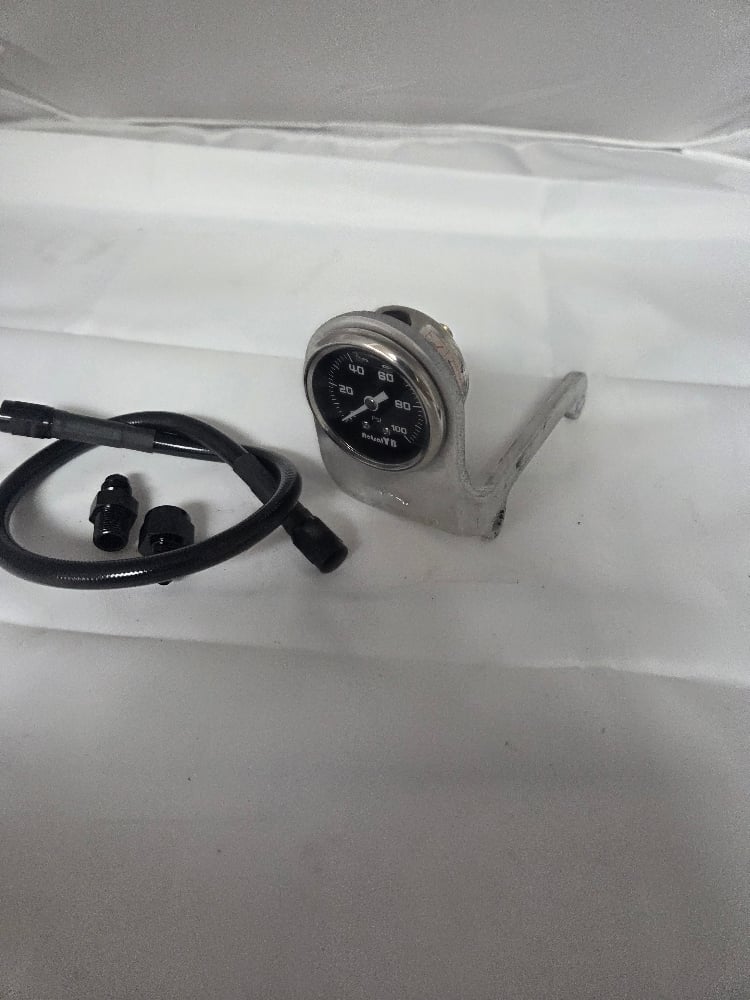

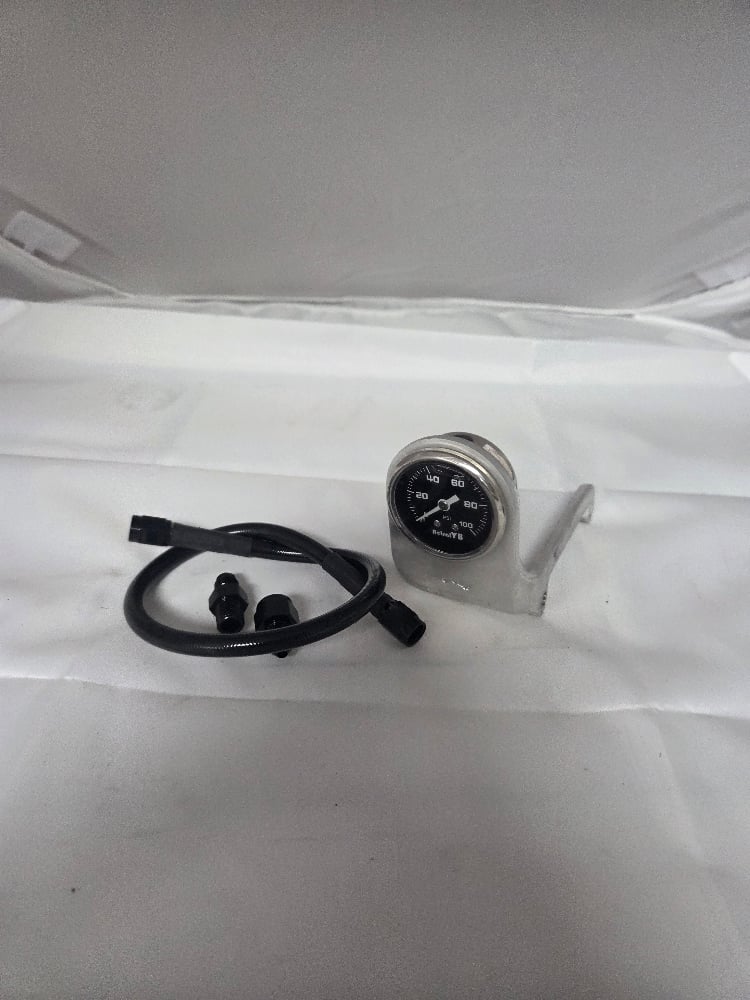

Stop guessing with a dummy oil light and start watching the real numbers. This Honda Shadow 600 oil pressure gauge kit replaces the stock VLX 600 oil pressure switch with a mechanical, liquid-filled gauge so you can see exactly what your engine is doing at idle, on the highway, and in summer heat. It’s a true bolt-on kit built specifically for the Shadow 600, with the right fittings, bracket, and line—no parts-bin hunting required.

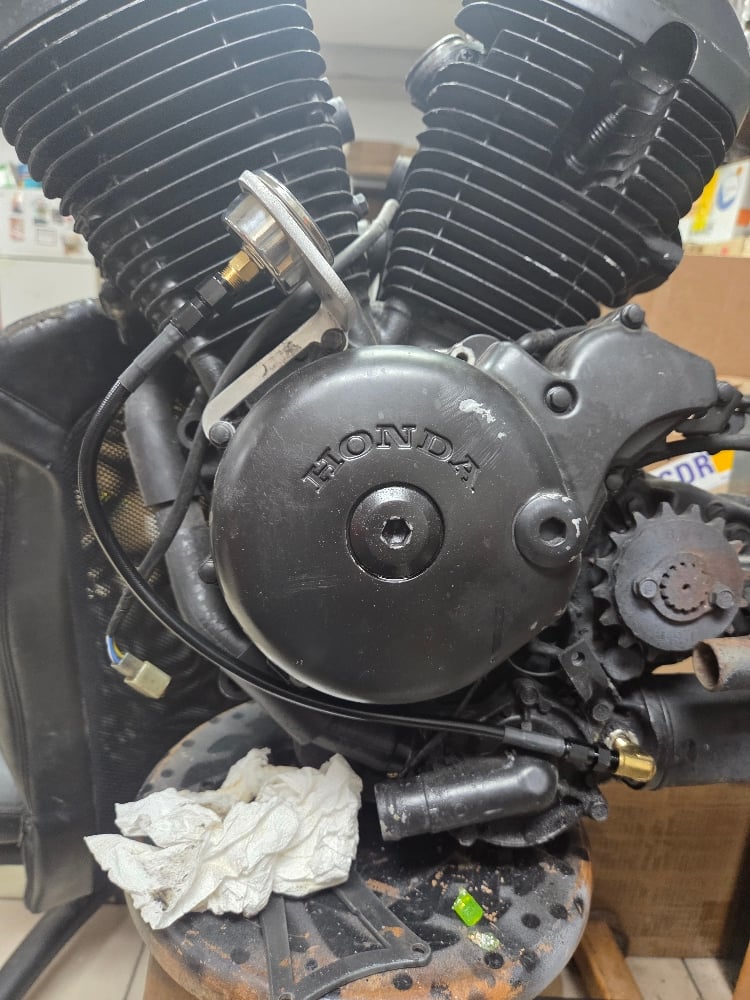

The gauge mounts off the side of the motor with a CNC-machined bracket and uses a braided stainless oil line to feed live pressure from the original switch port. Liquid filling keeps the needle steady against V-twin vibration, so you get a clear, stable reading instead of a bouncing blur. Whether you’re chasing reliability, tuning, or just want that industrial hot-rod look, this kit delivers function and style in one hit.

Key Features:

• Complete Honda Shadow 600 / VLX oil pressure gauge kit – no universal guesswork.
• Mechanical, liquid-filled gauge for vibration-resistant, steady readings.
• Replaces the stock oil pressure switch/dummy light sender at the factory port.

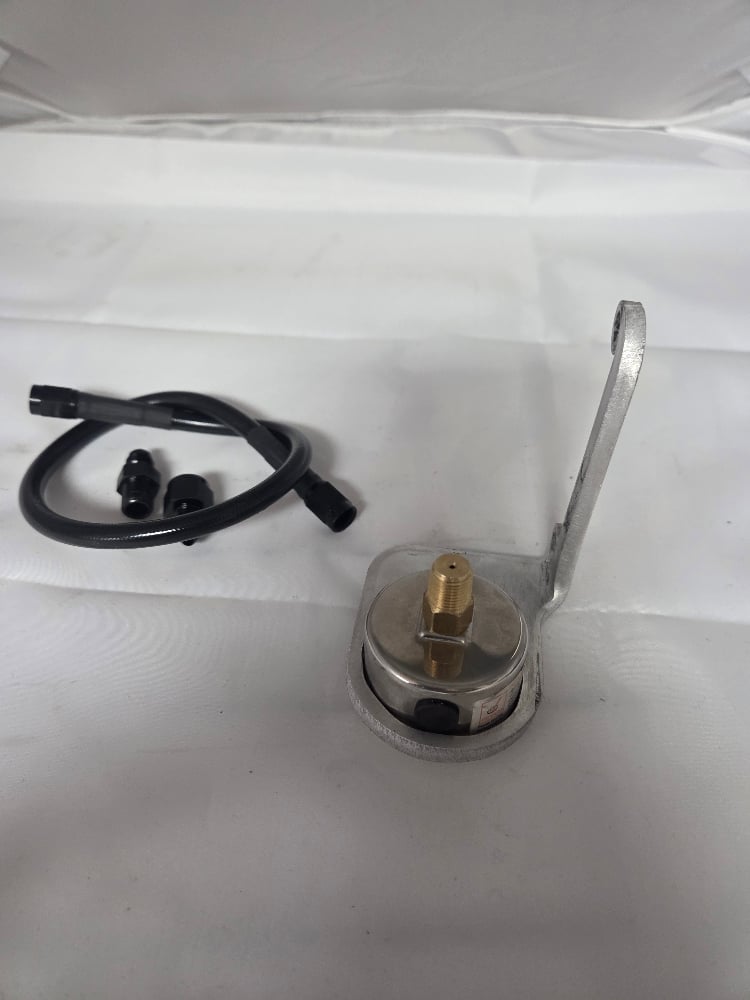

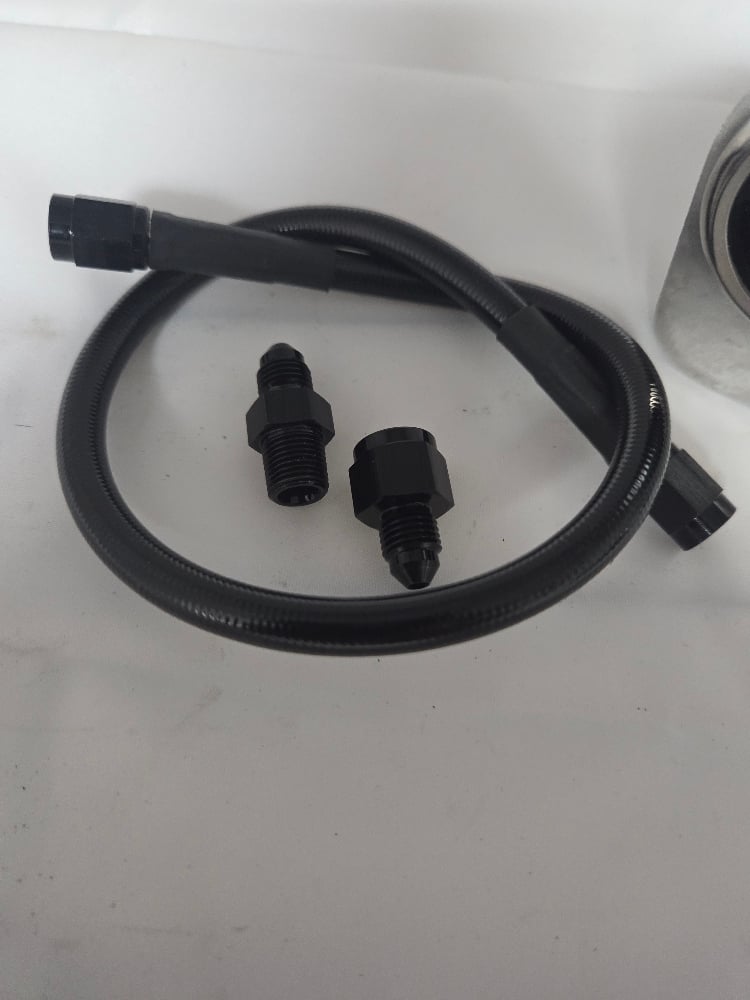

• Braided stainless oil line and correct fittings included for a clean, leak-free install.

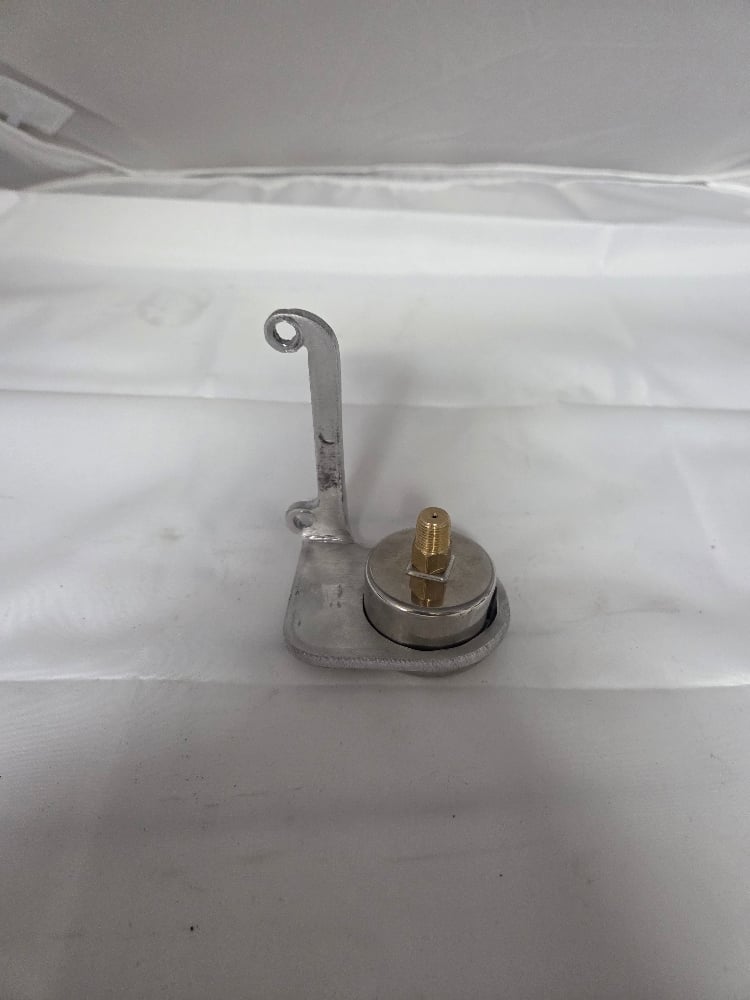

• CNC-machined side-mount bracket for a tight, industrial look on the VLX 600 engine.
• Built for riders who want real engine data instead of hoping the warning light comes on in time.

Fitment:

• Honda Shadow VLX 600 (VT600) – designed around the factory oil pressure switch location on these motors.
• Side-mount layout keeps the gauge visible while riding and clear of controls and exhaust.
• What It Solves:
• Replaces vague oil light flicker with an actual pressure reading, so you can tell low idle from low oil pressure.
• Helps diagnose overheating or lubrication issues before they become engine problems.
• Adds a serious custom touch to Shadow bobbers and performance builds without welding or tapping new ports.

FAQ:

1. Q: Where does this oil pressure gauge connect on a Honda Shadow 600? A. It installs at the factory oil pressure switch port, using the same location as the stock dummy light sender so you get true system pressure from the main gallery.
2. Q: Is a liquid-filled gauge better for motorcycles? A. Yes. The internal liquid cushions the gauge mechanism, dampens vibration, and steadies the needle, which is critical on a V-twin where a dry gauge would flutter and wear out faster.
3. Q: Do I lose my oil pressure warning light? A. Yes, this kit replaces the switch that drives the dash light. In exchange, you gain a real-time pressure gauge that’s far more informative than an on/off indicator.
4. Q: Is this kit universal or Shadow-specific? A. This is built as a Shadow 600-specific bolt-on kit, with the correct thread adapters, line length, and bracket geometry for the VLX engine—no universal adapter pile required.
5. Q: Mechanical or electric gauge? A. It’s a mechanical gauge with a direct oil feed line. Many riders prefer this style because it’s simple, sensor-free, and shows exactly what the pump is doing.

Hand-built in the independent chopper culture of Lake Worth, Florida, this Shadow 600 oil pressure gauge kit gives you the peace of mind of real data and the look of a purpose-built performance machine.
