Quick Wiring Fuse Box

Quick Wiring Fuse Box | 4-Circuit Relay Fuse Block with LED Indicators

Adding lights, ignition, or accessories to your chopper and want the wiring to stay simple? This quick wiring fuse box gives you a 4-circuit fuse block with an integrated 20 amp relay so you can feed multiple loads off one clean, switched power source.

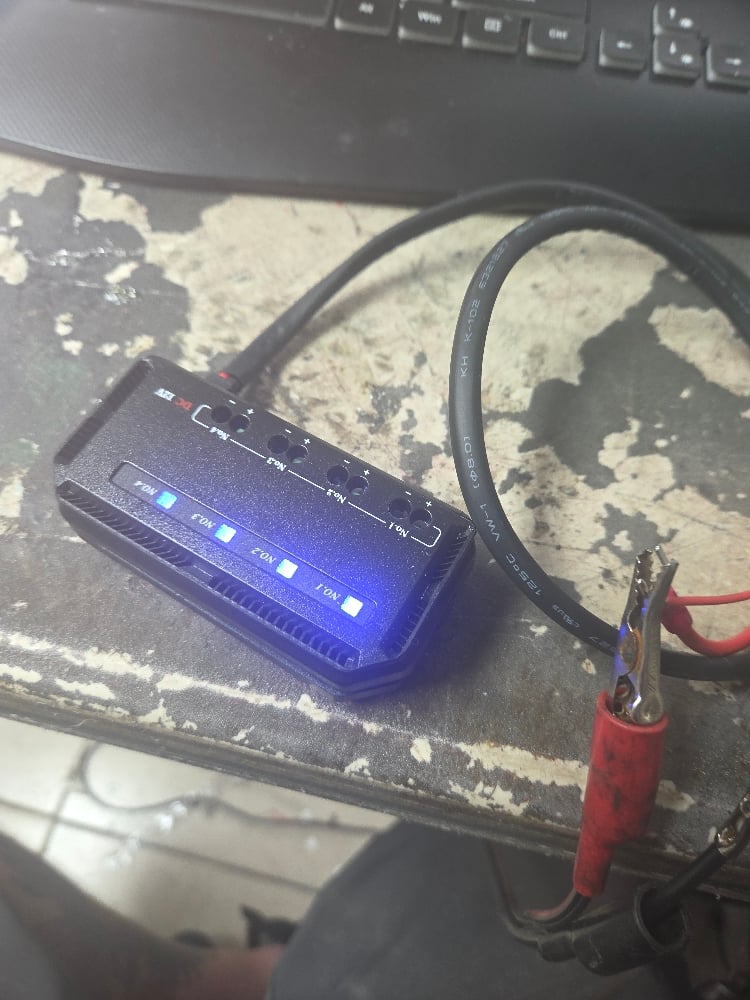

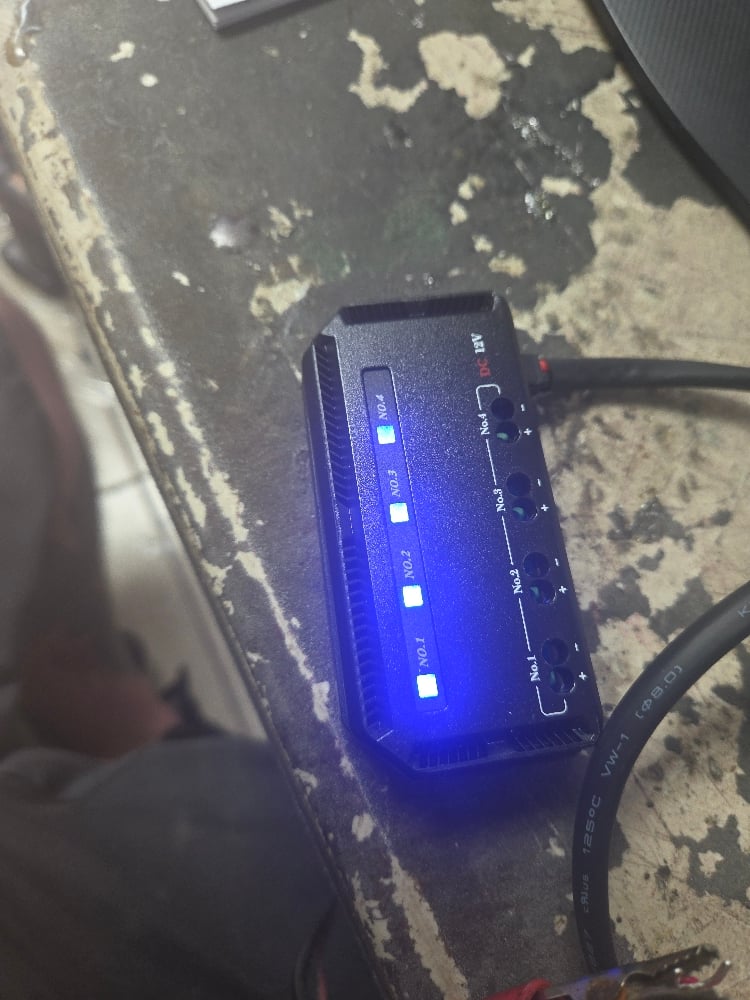

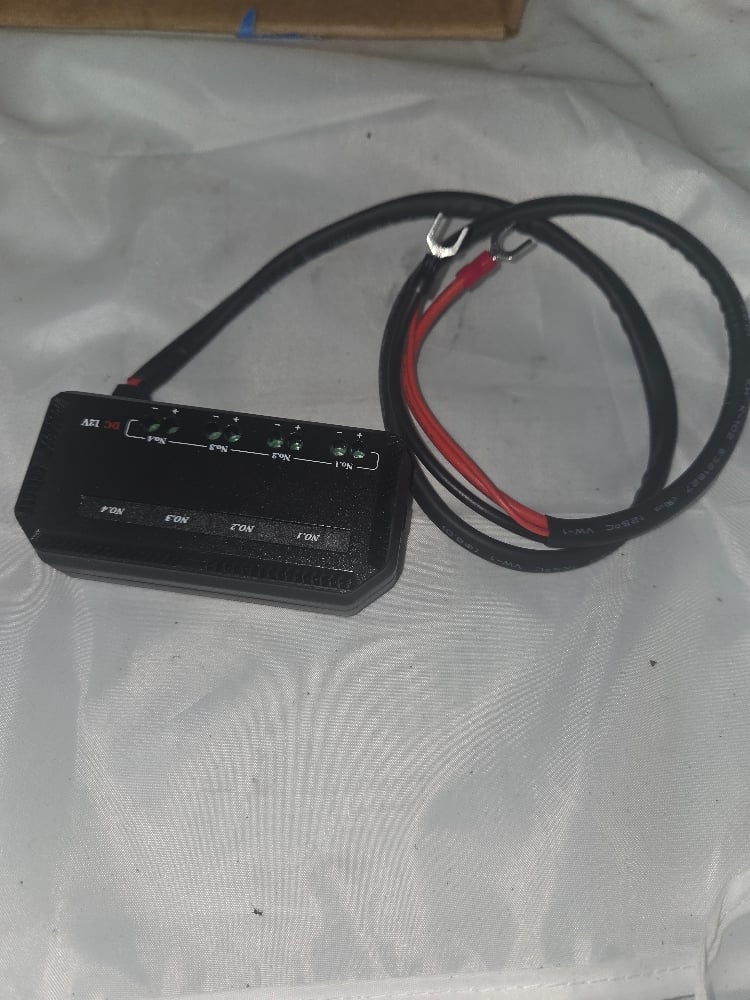

The black plastic housing includes four separate fused outputs and an LED indicator that glows blue under normal operation, then flips to red if a fuse pops so troubleshooting is quick. Mount it in your electronics box, run battery and switched power in, then land your circuits on the outputs and your custom bobber wiring suddenly gets a whole lot easier.

Key Features:

• 4-circuit quick wiring fuse box for custom motorcycle electrics.
• Integrated 20 amp relay with four individually fused outputs.
• LED fuse indicator changes from blue to red when a fuse blows.
• Black plastic housing that tucks neatly into electronics trays or under-seat areas.
• Built to simplify wiring on custom choppers, bobbers, and stripped-down bikes.

Fitment:

• Universal 12V applications for motorcycles and small custom projects.
• Ideal for powering lights, ignition, and accessories from a single fused/relayed block.

What This Fuse Box Does:

• Centralizes multiple circuits into one fused and relayed block instead of random inline fuses.
• Makes wiring cleaner and easier to troubleshoot with LED blown-fuse indication.
• Lets you add up to four protected circuits while keeping the layout compact.

FAQ:

1. Q: How many circuits does the quick wiring fuse box support? A: It has four separate fused outputs controlled by a built-in 20 amp relay.
2. Q: What does the LED indicator do? A: The indicator is blue during normal operation and switches to red if one of the fuses blows.
3. Q: What kind of housing does it use? A: The fuse box is housed in a black plastic case that’s easy to mount in an electronics bay or under the seat.
4. Q: What is this best used for on a bike? A: It’s perfect for organizing and protecting circuits like ignition, headlight, tail light, and accessories on custom builds.
5. Q: Can I use it on any 12V motorcycle? A: Yes, as long as your total loads stay within the rating of the relay and each individual fuse.

The quick wiring fuse box gives custom chopper and bobber builders a compact 4-circuit, LED-indicated fuse and relay block that keeps wiring clean, protected, and easy to diagnose.
