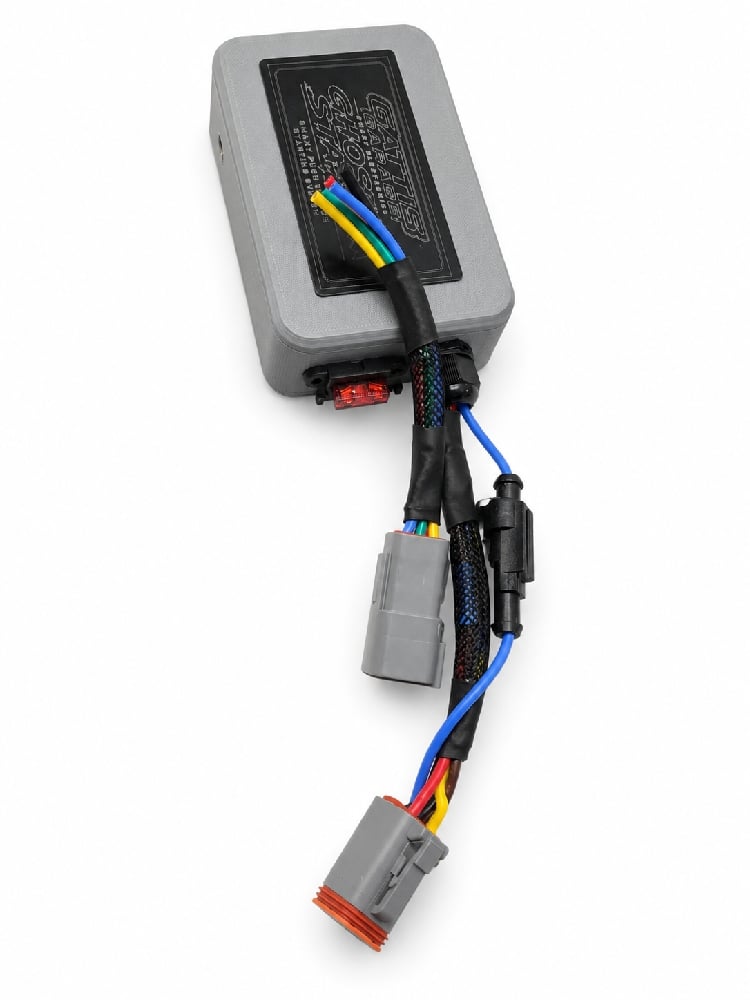

Image 2 of Ghost Start Module.

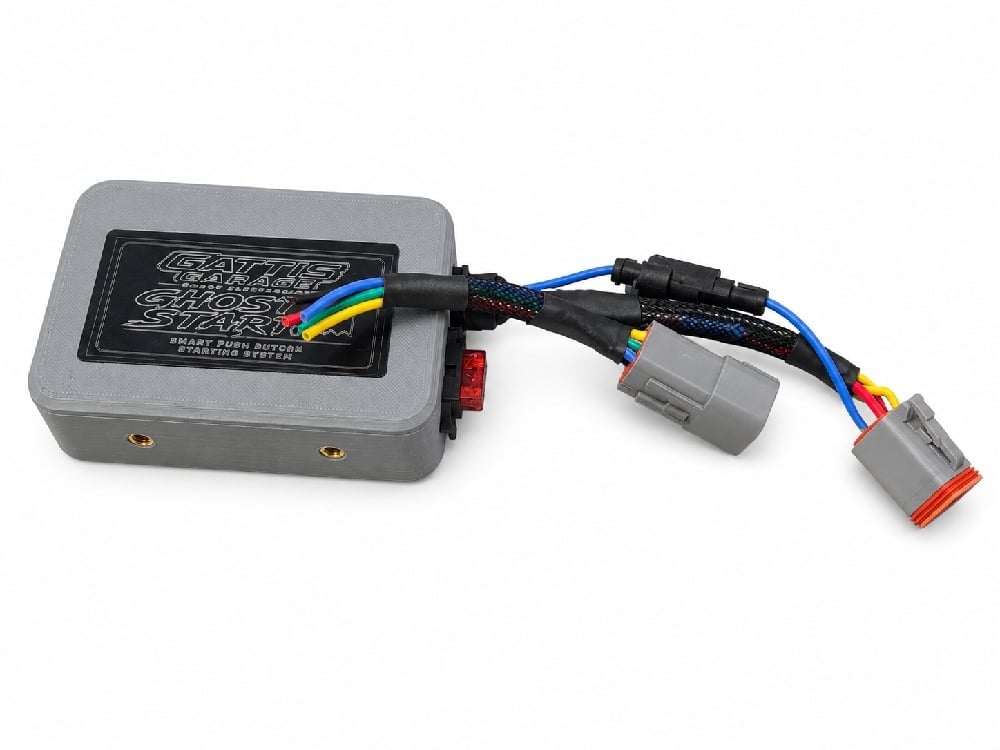

Image 3 of Ghost Start Module.

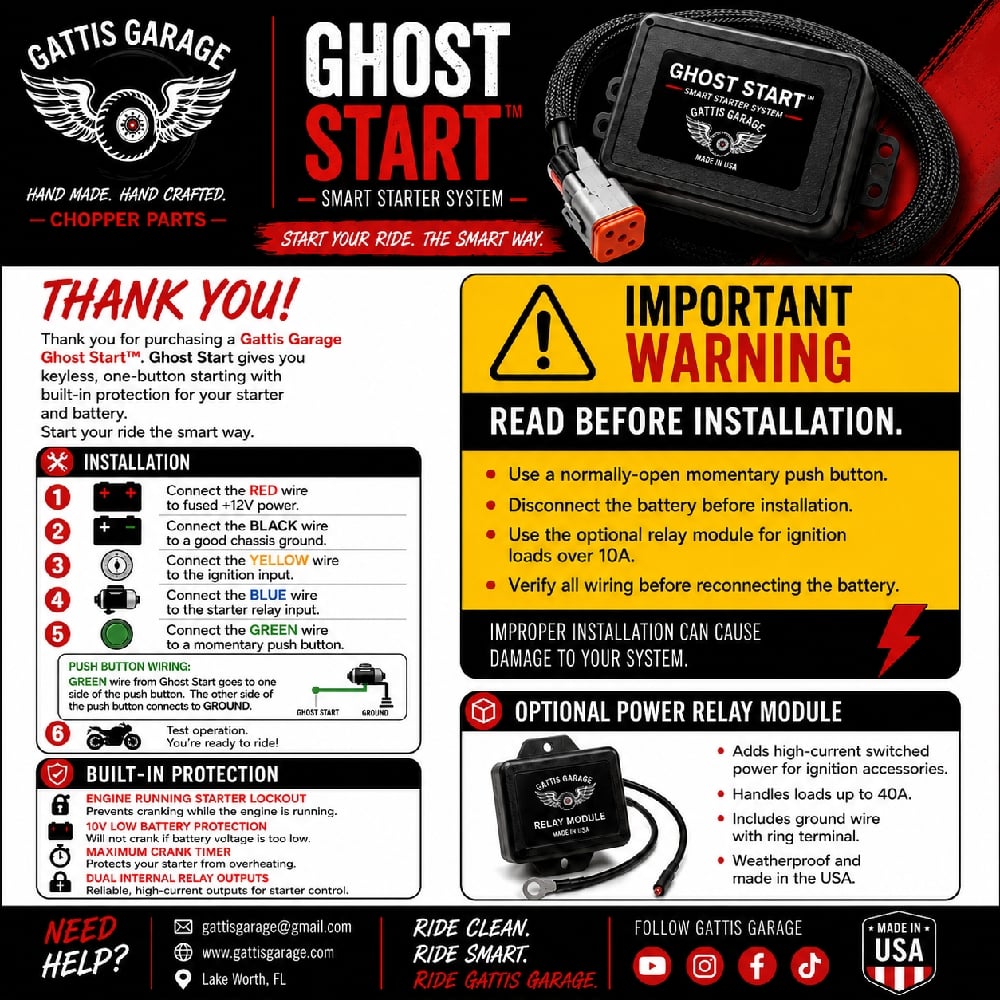

Image 4 of Ghost Start Module.
1 of 4

Ghost Start Module.

$110.00 - $129.00

Ghost Start™ – One Button. No Key. No Compromise.

Transform your motorcycle with the Gattis Garage Ghost Start™, a compact electronic push-button ignition system that replaces the traditional key switch with any momentary push button of your choosing .


A single press powers the ignition. Press again to crank the engine. Press once more to shut the bike off. It's clean, simple, and gives your motorcycle a modern custom feel without sacrificing reliability.Ghost Start is designed for motorcycles using standard 12-volt electrical systems and features intelligent battery monitoring to prevent starting when battery voltage falls below a safe level, helping protect your battery from excessive discharge.

Features

  • Single-button ON / START / OFF operation
  • Compact hidden control module
  • Intelligent low-voltage start protection
  • Simple 5-wire installation
  • Solid-state electronic control
  • Built and tested by Gattis Garage

Built-In 10 Amp Outputs

The Ghost Start module includes two independent 10-amp outputs:

  • Ignition Output – 10 Amps
  • Starter Output – 10 Amps

These outputs are perfect for motorcycles whose ignition circuit draw 10 amps or less, allowing many bikes to be wired directly without additional components.

Optional 30 Amp Relay Module

Some motorcycles, custom wiring setups, and high-current ignition systems require more than 10 amps. For these applications, Ghost Start is fully compatible with the optional Gattis Garage 30 Amp Relay Module.The add-on relay module allows the Ghost Start to safely control loads up to 30 amps while the Ghost Start itself only switches the relay. This makes it ideal for:

  • High-current ignition systems
  • Older motorcycles with heavy electrical loads
  • Custom builds
  • Applications requiring maximum reliability

The relay module installs inline with the Ghost Start harness and is availible as an add on option.


Whether you're building a clean custom bobber, café racer, chopper, or modern restomod, Ghost Start delivers the convenience of push-button starting with the reliability and simplicity riders expect from Gattis Garage.
